GSOFT 3050 - UPDATE

Operation of the logger functions

The logger data can be printed out

Saving of the logger data

Presentation of the logger data as a diagram

Adjusting of alarm functions, etc.

System Requirements: Windows 95 /98 / ME / NT / 2000 / XP / VISTA

You need the full version of the software GSOFT 3050 to install the update.
The update on its own is not executable.

Gratis update available in the download-area.
Please mind the notes stated at service-area.





GMH 3000.DLL
For interface communication GMH3xxx / GMH5xxx <-> PC
To include the functions of the GMH 3xxx in one's own programs





USB 5200
for GMH 5000 Handheld Instruments
With additional analog output, can be set on the device.





ST-R1-US
Nappa leathern device protection bag with 1 round cut-out for sensor connection
with strap





GNG 8901
Input:   220/2400 V AC
Output voltage:   7.5 V DC stabilized, max. 500mA
Connection:   DC connector





ST-KO
For use with:   GTD 1100, GPB 2300, GPB 3300





EBS 20M

for recording, monitoring, visualization and documentation of up to 20 EASYBus / GMH devices
Simultaneous use of several serial interfaces Sumultaneous use of different serial converters Mixed operation of EASYBus devices and GMH handheld devices Quick and easy installation Visualization of actual measurements values with error message and status information Freely scaleable diagrams and alarm limits Visualization of recorded datas during the measurement possible Creation of diagrams and tables Data export Scanning cycle for each devices separat adjustable Trusted data storage via SQL database
System Requirements:	WINDOWS XP, WINDOWS VISTA, WINDOWS 7 (32 Bit or 64 Bit Version)
Software Components:	Microsoft .NET Framework 3.5 SP1 Language Pack for Microsoft .NET Framework 3.5 SP1 (in scope of supply)
Scope of Supply:	Software CD-ROM, Manual
Note:	Replacement software for EBS 9M





Profilab-Expert 4.0

Universal measuring and controlling software for professional applications

Integration of the measuring values in the controlling process

Visual programming of complex controlling processes

GeneralThe ProfiLab-Expert software allows you to develop your own digital or analogue measuring technology projects. It doesn’t matter if you want to create analogue measurements or digital controls - you can realize it all. And for all this you don’t have to write a single program-line. You create your projects just like drawing a wiring diagram. Simply add buttons, displays, etc. to your diagram and build your project step by step.




The development of own controlling systemsProfiLab-Expert is an easy to use software. After a short settling-in period you can can use the software intuitive.For creating your projects, you can find all arithmetic and logic components in the extensive library.
Logic components like gates, pulse generators, flipflops, counter, register, ram, rom, etc. or arithmetic components like trigger, sample&hold, formulas, alarm clocks, etc. gives you extensive possibilities to create even complex projects.
Diverse components like Y(t)--plotter, XY-Plotter, data recorder, displays, counter or tables are ready to display or store your results of measurements.
You create your project just like drawing a wiring diagram. Simply draw the needed components to your project and connect them, just like you want. So there is no limit, except your imagination.

After you have finished your project, you can bring it to life with one click: Your project will be simulated in realtime. All incoming measuring values will be processed and displayed, just as you have defined it in your project. Of course, you can stop the simulation at any time, to edit your project.

Front PanelDuring the simulation, you can control your project by a free designed front panel. All control-components like buttons, potis, etc. and all display-components like displays, meters or tables are present on the front panel. You can design the front panel just like you want. So you can create not only a good working project. You can design a good-looking application!




Supported HardwareYou can use a wide range of hardware devices with ProfiLab-Expert. The actual version works excellent together with all GREISINGER-instruments (e.g. series GMH 3XXX, GCO 100 GFTB 100/GRS, GIR, GIA, EASYBUS-series etc.). The new version also supports several hardware (multimeter, internal cards, external devices). Every hardware will be displayed in your project like a normal component. You only have to connect it! During the simulation, the hardware will work together with your created project.





EBS 60M

for recording, monitoring, visualization and documentation of up to 60 EASYBus / GMH devices
Simultaneous use of several serial interfaces Sumultaneous use of different serial converters Mixed operation of EASYBus devices and GMH handheld devices Quick and easy installation Visualization of actual measurements values with error message and status information Freely scaleable diagrams and alarm limits Visualization of recorded datas during the measurement possible Creation of diagrams and tables Data export Scanning cycle for each devices separat adjustable Trusted data storage via SQL database
System Requirements:	WINDOWS XP, WINDOWS VISTA, WINDOWS 7 (32 Bit or 64 Bit Version)
Software Components:	Microsoft .NET Framework 3.5 SP1 Language Pack for Microsoft .NET Framework 3.5 SP1 (in scope of supply)
Scope of Supply:	Software CD-ROM, Manual





GEH 1
Electrode holder for  electrodes and probes
suitable for our electrodes (pH/Redox, conductivity, oxygen, ...) and temperature probes with handle

for max. 4 elektrodes / probes





MINIDIN 4S

Mini-DIN plug in, 4-pin, with lock and for self installation





AAG2M

2 m analog output cable, 2x banana plug





USB 5100
Connection to PC:   USB
Connection to GMH:    4-pole bayonet female plug
Connection cable:   ca. 1m
Miscellaneous:   electrically isolated
Usage:    Connection of GMH 5530 and GMH 5550 to the USB interface of a PC





K 50 BL
suitable for GMH 2710-... and GMH 5xxx





ST-KN
For use with: GTH 1150, GTH 1170





K 50 RE
suitable for GMH 2710-... and GMH 5xxx





USB 3100 N
Connection to PC:   USB
Connection to GMH:    3.5mm jack connector
Connection cable:   ca. 1m
Miscellaneous:   electrically isolated
Usage:    Connection of devices of the series 3xxx to the USB interface of a PC





AAA-Akku





GLI 9V

9V, approx. 1200 mAh





GKK 4400

robust case for up to 10 devices or accessories, foam for water analysis (closed cell structure), with bottle and electrode retainer.

Dimensions: 500 x 405 x 140 mm





GNG 5/5000
output voltage: 5 VDC
suitable for devices with BNC
(e.g. for devices of the series GMH5XXX)





GKK 1105
Dimensions:   340 x 275 x 83 mm
Inlay:                 punched lining with cut-outs
Usage:          fitting for 1 device of the GMH series 3xxx or 5xxx





GDZ-29

incl. Luer-Locks (GDZ-25 and GDZ-26)

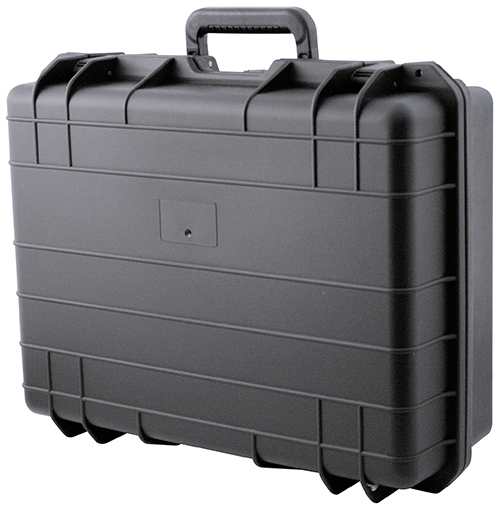

GKK 5240

suitable for universal applications due to possibility of individual adaption of its foam lining, pressure balance possible.

Dimensions: 530 x 415 x 200 mm





ST-KF
suitable for: GFTH 95, GFTH 200, GFTB 200, GTH 200 air





ST-KR
suitable for: GTH 175, GOX 20, GOX 100, GLF 100, GLF 100 RW





ST-KD
suitable for: GDH 200 - 07, GDH 200 - 13, GDH 200 - 14, GMR 110





AAG 5000

cable length 1 m
connectors: 1 x bayonet socket
LTW 4-pole
1 x loose ends
with ferrules
application: GMH 5xxx





ST-N1
For use with: GMH 3210, GMH 1150, GMH 1170





ST-N2
For use with: GMH 3230, GMH 3250





ST-R1
For use with: GMH 3710, GMH 3750, GMH 175





ST-R2
For use with: GMH 3155, GMH 3160, GMH 3180, GMH 3510, GMH 3530





USB-Adapter
Input:                         9-pin Dsub-plug
Output:                      USB connection
Connection cable:  approx. 1m
Miscellaneous:       incl. Driver disk and connection adaptor





GNG 10
Input: 220/240 VAC
Output voltage: 10.5 VDC stabilized, max. 10mA
Connection: 2.5mm jack plug
Suitable for: GDH..AN, GPRT 1400AN





GNG 10/3000
Input: 220/240 VAC
Output voltage: 10.5 VDC stabilized, max. 10mA
Connection: barrel plug, inner diameter 1.9mm
Suitable for: Series GMH 3xxx, GMH 1150, GMH 175





GRS 3100
Connection to PC:   9-pin DSub-socket
Connection to GMH:    3.5mm jack connector
Connection Cable:   ca. 1m
Miscellaneous:    electrically isolated
Usage:    Connection of devices of the series 3xxx to the RS232-interface of a PC





VEKA 3105
For connection of devices of the series 3xxx to the 5-fold interface converter GRS 3105





GB 9V
9VDC, type IEC 6F22





ST-RN
For use with: GMH 3830, GMH 3850, GMH 3350, GMH 3330





GKK 3500
Dimensions:   394 x 294 x 106 mm
Inlay:                 foam lining with cut-outs
Usage:              fitting for 1 device of the series GMH 3xxx and accessories





GKK 252
Dimensions:  235 x 185 x 48 mm
Inlay:                punched lining, without cut-outs
Usage:             universal





GRS 3105
Power supply: 230V 50/60Hz
Connection to PC: 9-pin Dsub-socket
Connection to GMH: 5x 3.5mm jack connector
Connection cable: 5x 1.5m
Features: electrically isolated
Usage: Connection of up to 5 devices of the series 3xxx to the RS232 interface of a PC





GKK 3000
Dimensions:  275 x 229 x 83 mm
Inlay:                with cut-outs
Usage:             fitting for 1 device of the series 3xxx and accessories





GAM 3000
Power supply: 230V 50/60Hz
Switching output: controlled socket, choice between normally-open and normally-closed
Switching modes: alarm output, alarm output memorizing, control output
connection of GMH: connection cable, permanently connected with device, 3.5mm jack connector
Power supply unit: integrated power supply unit 10.5V / 10mA





GKK 3100
Dimensions:  275 x 229 x 83 mm
Inlay:                foam lining, without cut-out
Usage:             for universal use (e.g. 1 device of the series GMH 3xxx and accessories)





GKK 1100
Dimensions:   340 x 275 x 83 mm
Inlay:                 punched lining, without cut-outs
Usage:              universal





GKK 3700
Dimensions:  450 x 361 x 140 mm
Inlay:                punched lining, without cut-outs
Usage:             universal





GKK 1420
Dimensions:  450 x 361 x 140mm
Inlay:                with cut-outs
Usage:             fitting for 2 devices of the series 3xxx and accessories





GLG 1300
rechargeable battery charger for 2 NiCd/NiMh in design:

• 9V accumulators (6F22) > 12mA
• AA (Mignon, UM3) > 210mA
• AAA (Micro, UM4) > 210mA

Features: integrated timer, LED control, polarity protection,
automatic charging current adjustment, impuls trickle charge





GAK 9V





GSA 25S-9B
25-pin Dsub plug <=> 9-pin Dsub socket





GSA 9S-25B
9-pin Dsub plug <=> 25-pin Dsub socket
